Automotive Relays

Automotive Relays Home > Relays > Automotive Relays

Model	AZ947 - 20 AMP SUBMINIATURE POWER RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ975/AZ976 - 20 AMP MINIATURE AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form B 1 Form C 1 Form U 1 Form V 1 Form W
Layout

Model	AZ977 - 20 AMP MICRO-ISO AUTOMATIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ978 - 20 AMP MINIATURE POWER RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ984 - 20 AMP 280-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ992 - 20 AMP AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A
Layout

Model	AZ9751/AZ9761 - 20 AMP MINIATURE AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C 1 Form U 1 Form W
Layout

Model	AZ9421A - 20 AMP MINIATURE AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	20A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ989 - 25 AMP SUB-MICRO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	25A
Contact Form	1 Form C 2 Form C
Layout

Model	AZ987 - 30 AMP MICRO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	30A
Contact Form	1 Form A 1 Form C 2 Form A 2 Form C
Layout

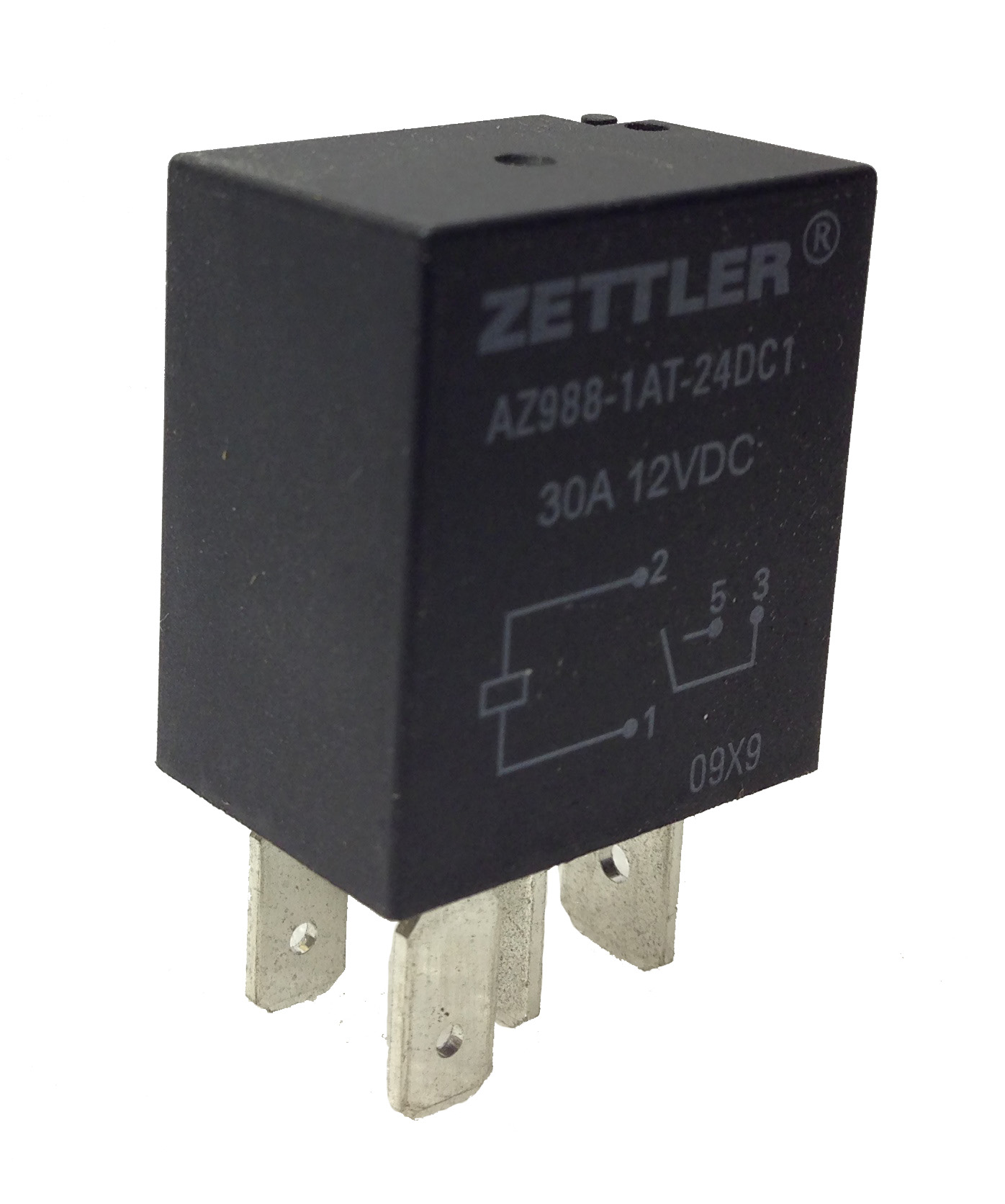

Model	AZ988 - 30 AMP MICRO-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	30A
Contact Form	1 Form A 1 Form C
Layout

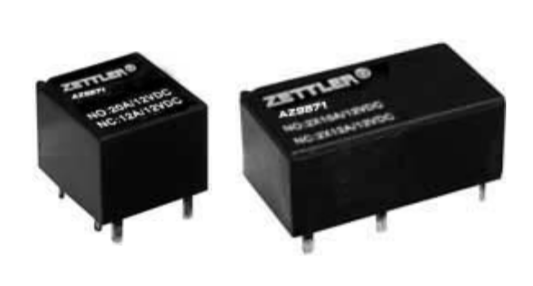

Model	AZ9871 - 30 AMP MICRO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	30A
Contact Form	1 Form A 1 Form C 2 Form A 2 Form C
Layout

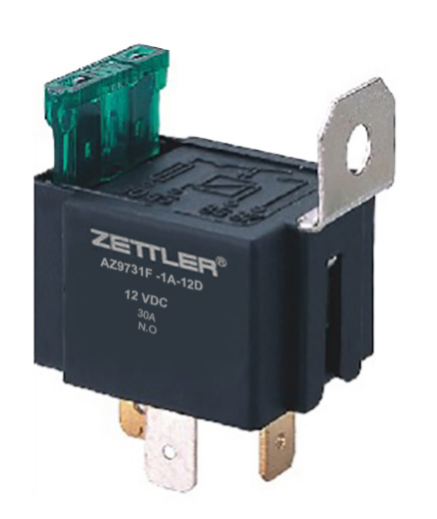

Model	AZ9731F - 30 AMP MINI-ISO AUTOMOTIVE RELAY WITH FUSE [PDF Download]
Outline
Max. Switched Current	30A
Contact Form	1 Form A
Layout

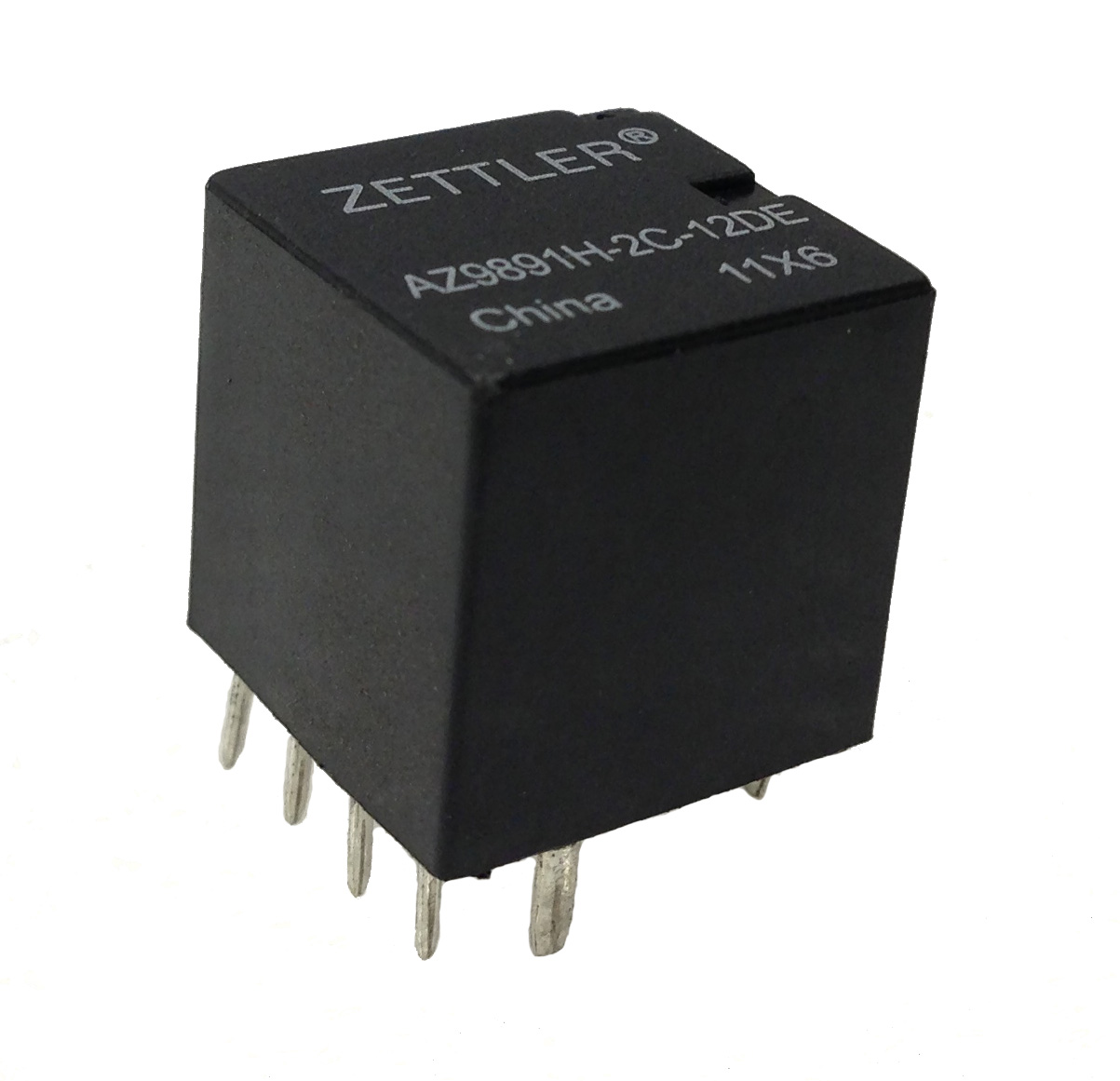

Model	AZ9891J - 30 AMP SUB-MICRO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	30A
Contact Form	1 Form C 2 Form C
Layout

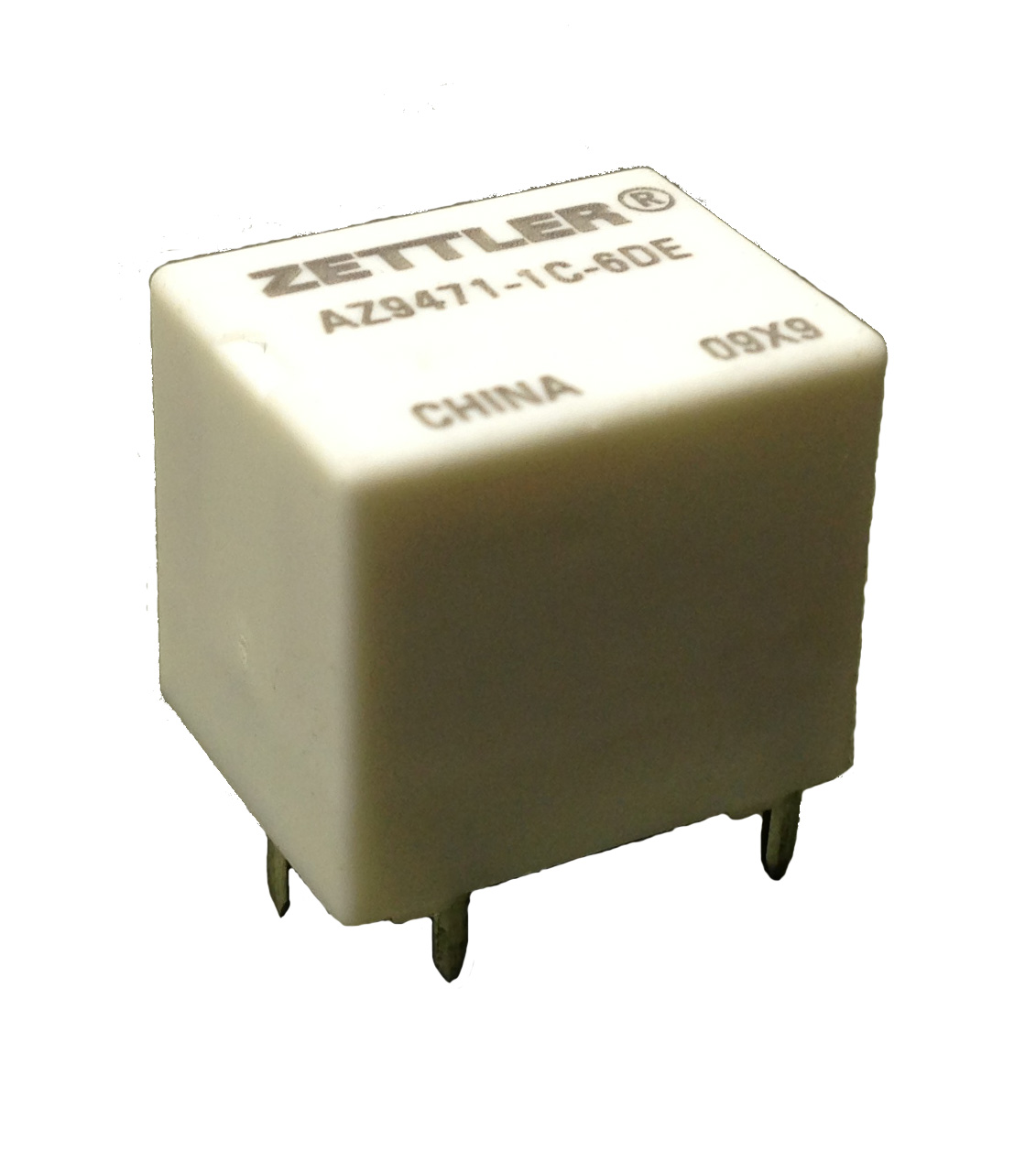

Model	AZ9471 - 35 AMP SUBMINIATURE AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	35A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ9861 - 40 AMP 280-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ973 - 40 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C
Layout

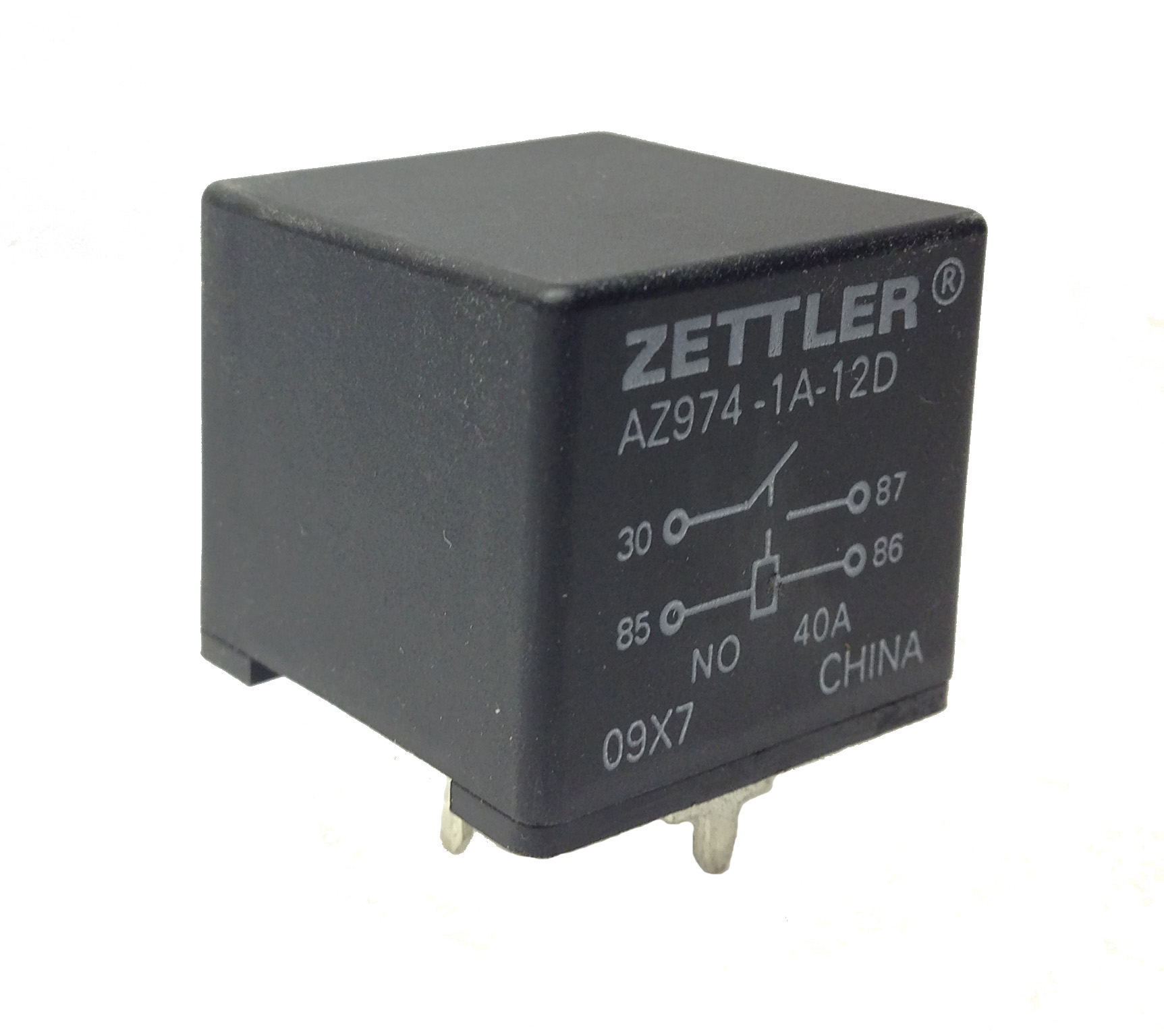

Model	AZ974 - 40 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C
Layout

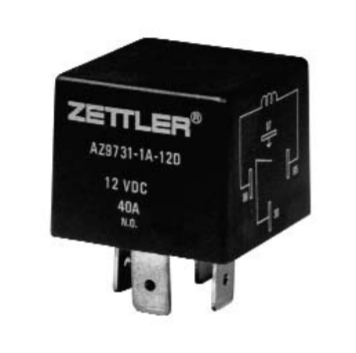

Model	AZ9731 - 40 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C 1 Form U 1 Form A2
Layout

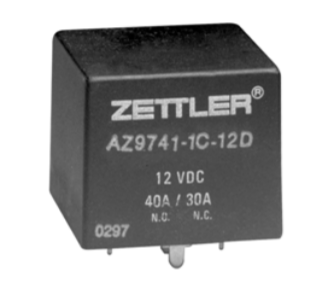

Model	AZ9741 - 40 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C
Layout

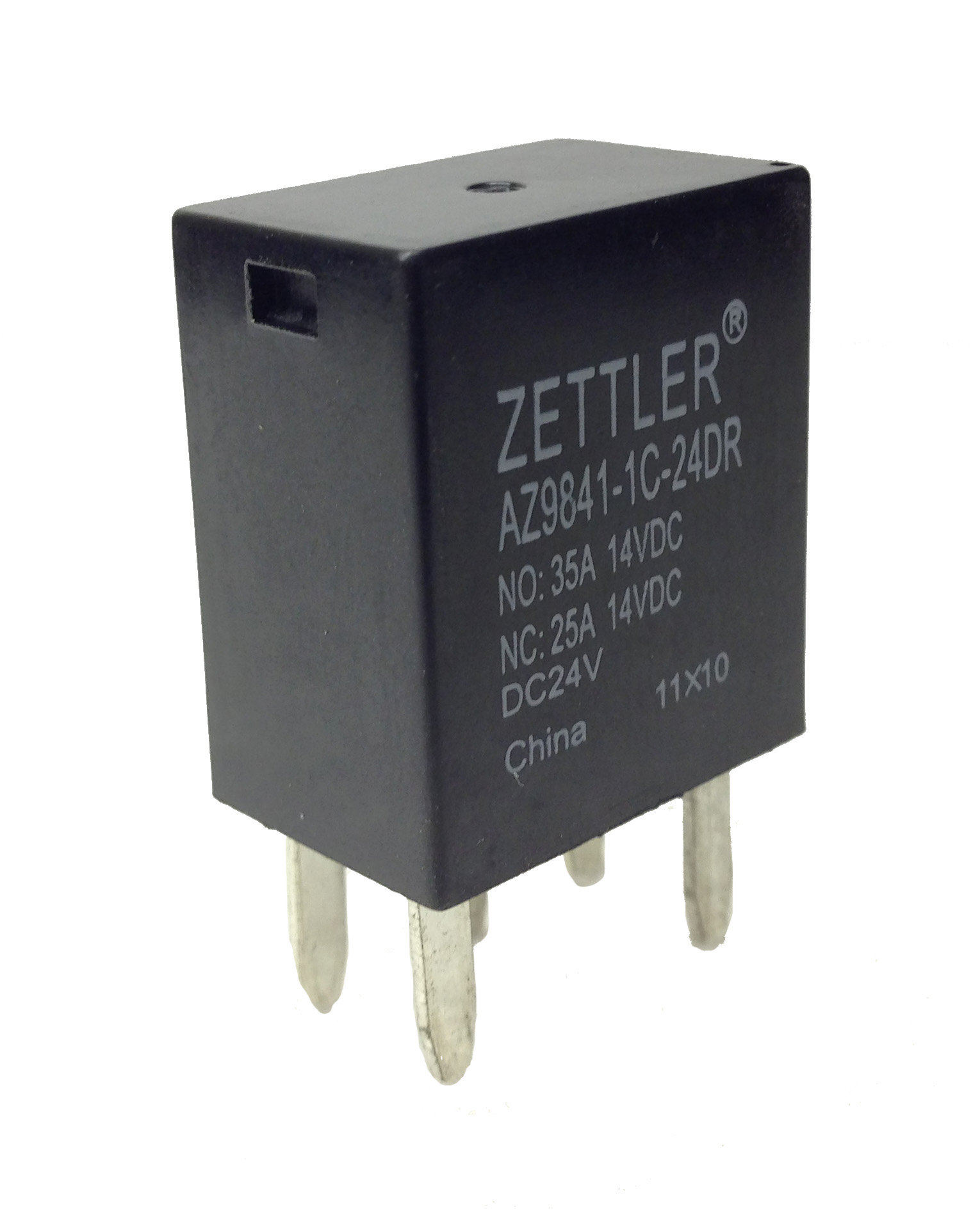

Model	AZ9841 - 40 AMP 280-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	40A
Contact Form	1 Form A 1 Form C
Layout

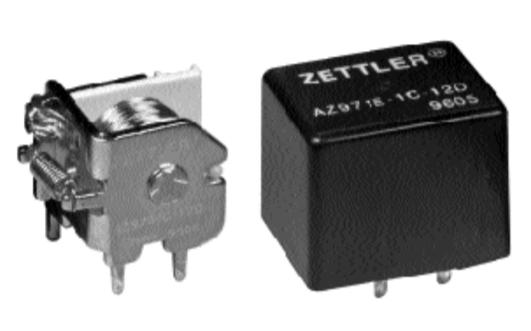

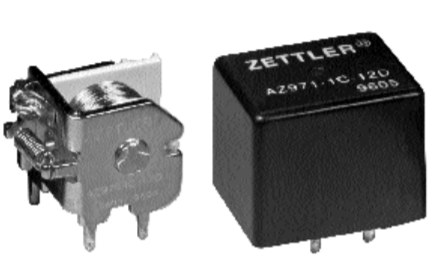

Model	AZ970/AZ971 - 45 AMP AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	45A
Contact Form	1 Form A 1 Form B 1 Form C
Layout

Model	AZ9701/AZ9711 - 45 AMP AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	45A
Contact Form	1 Form A 1 Form C
Layout

Model	AZ970E/AZ971E - 45 AMP AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	45A
Contact Form	1 Form A 1 Form B 1 Form C
Layout

Model	AZ9701E/AZ9711E - 45 AMP AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	45A
Contact Form	1 Form A 1 Form C
Layout

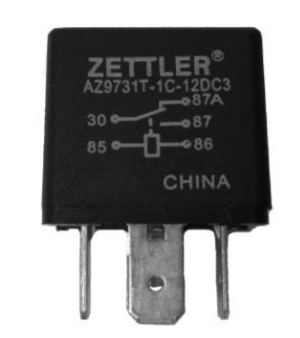

Model	AZ9731T - 50 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	50A
Contact Form	1 Form A 1 Form C 1 Form U 1 Form A2
Layout

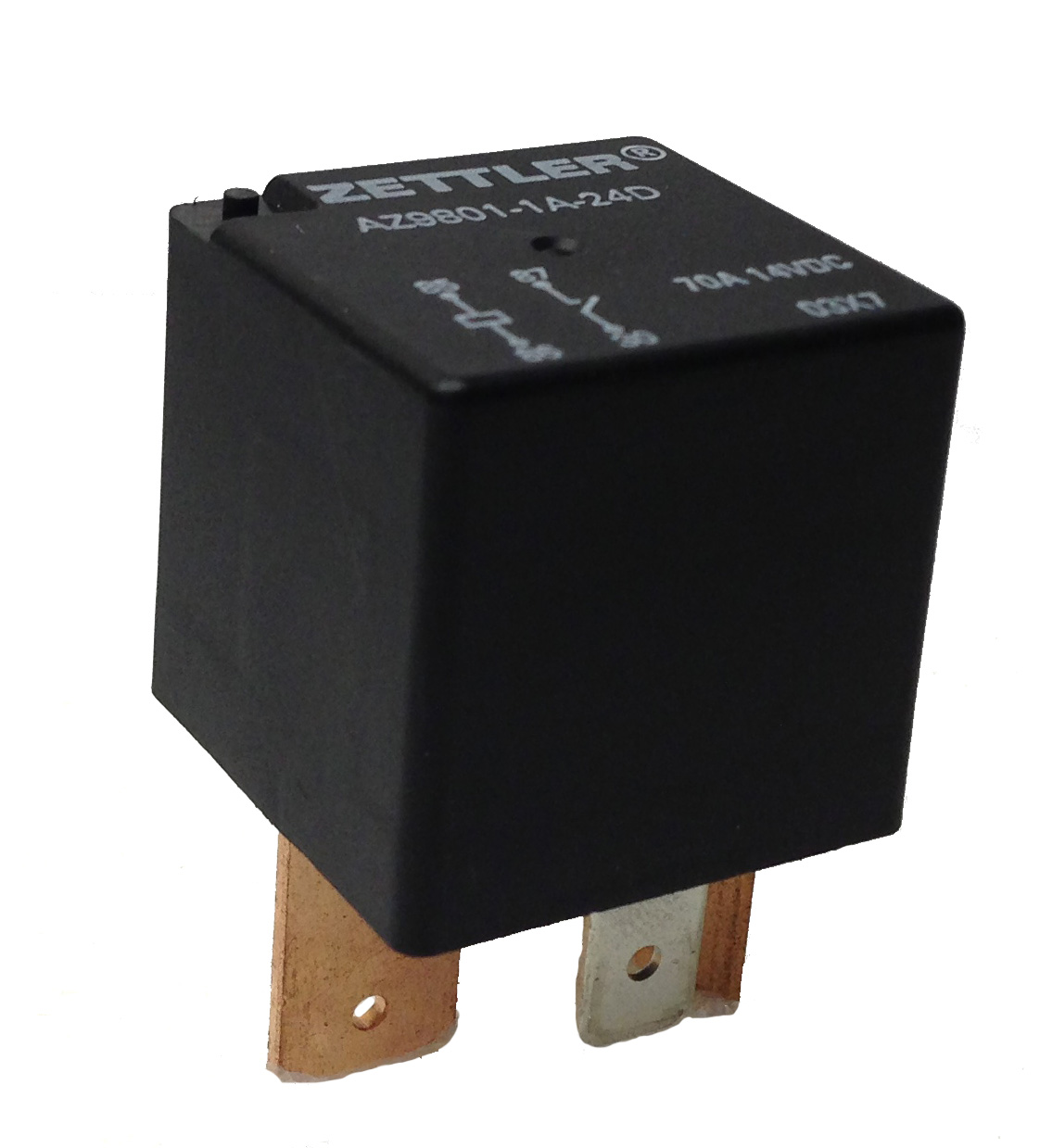

Model	AZ9801 - 70 AMP SUPER-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	70A
Contact Form	1 Form A
Layout

Model	AZ9831 - 70 AMP SUPER-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	70A
Contact Form	1 Form A
Layout

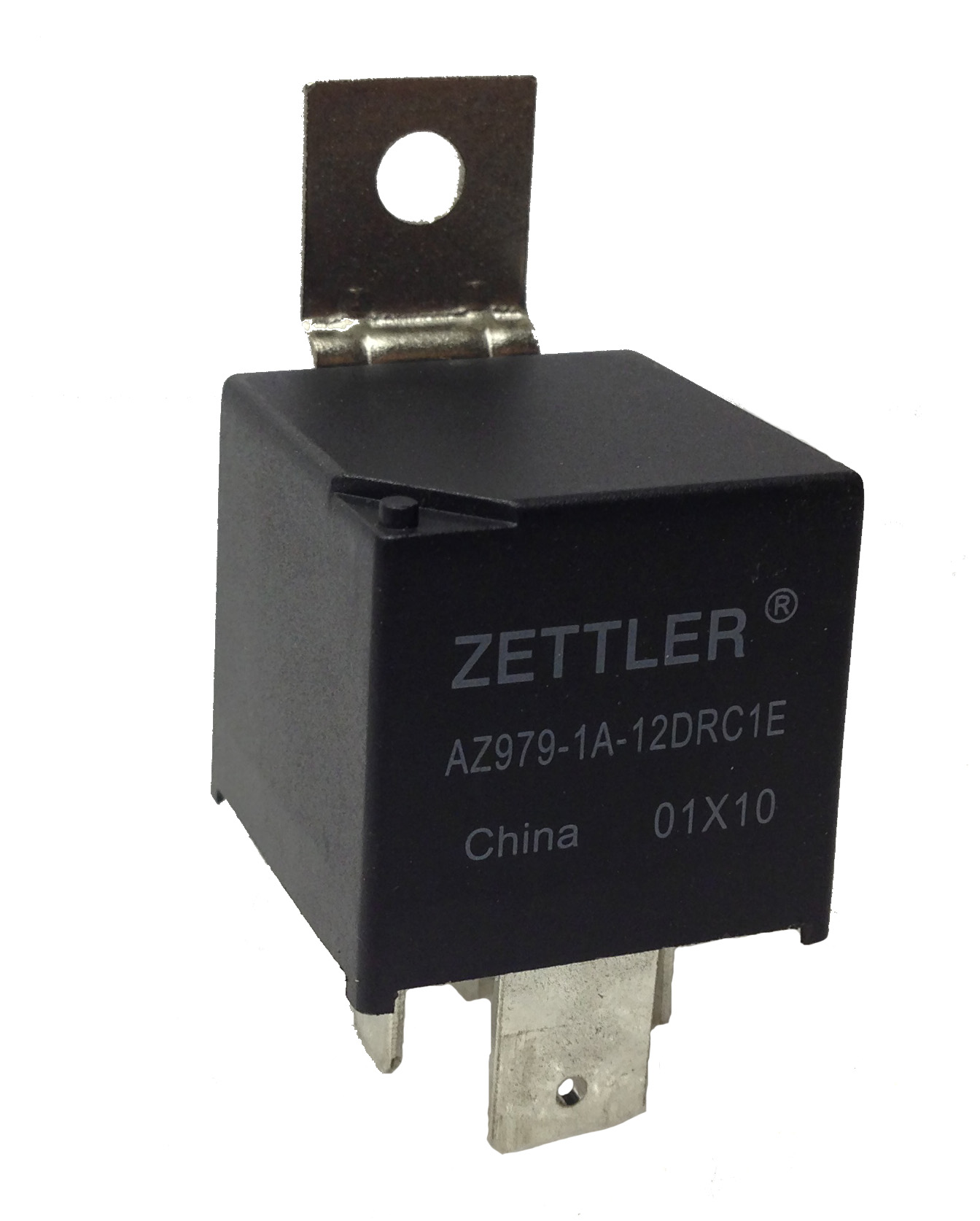

Model	AZ979 - 80 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	80A
Contact Form	1 Form A 1 Form B 1 Form C
Layout

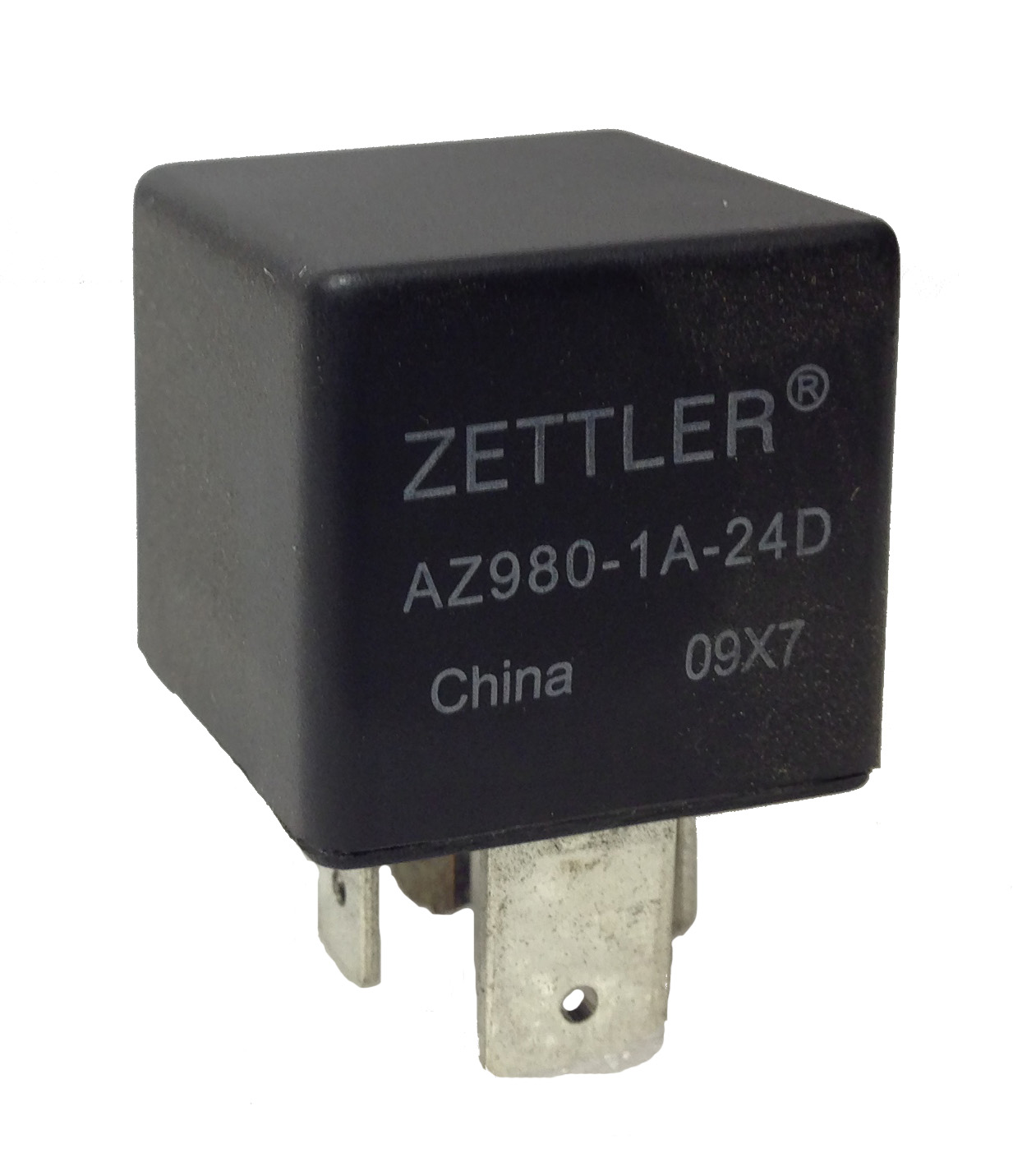

Model	AZ980 - 80 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	80A
Contact Form	1 Form A 1 Form B 1 Form C
Layout

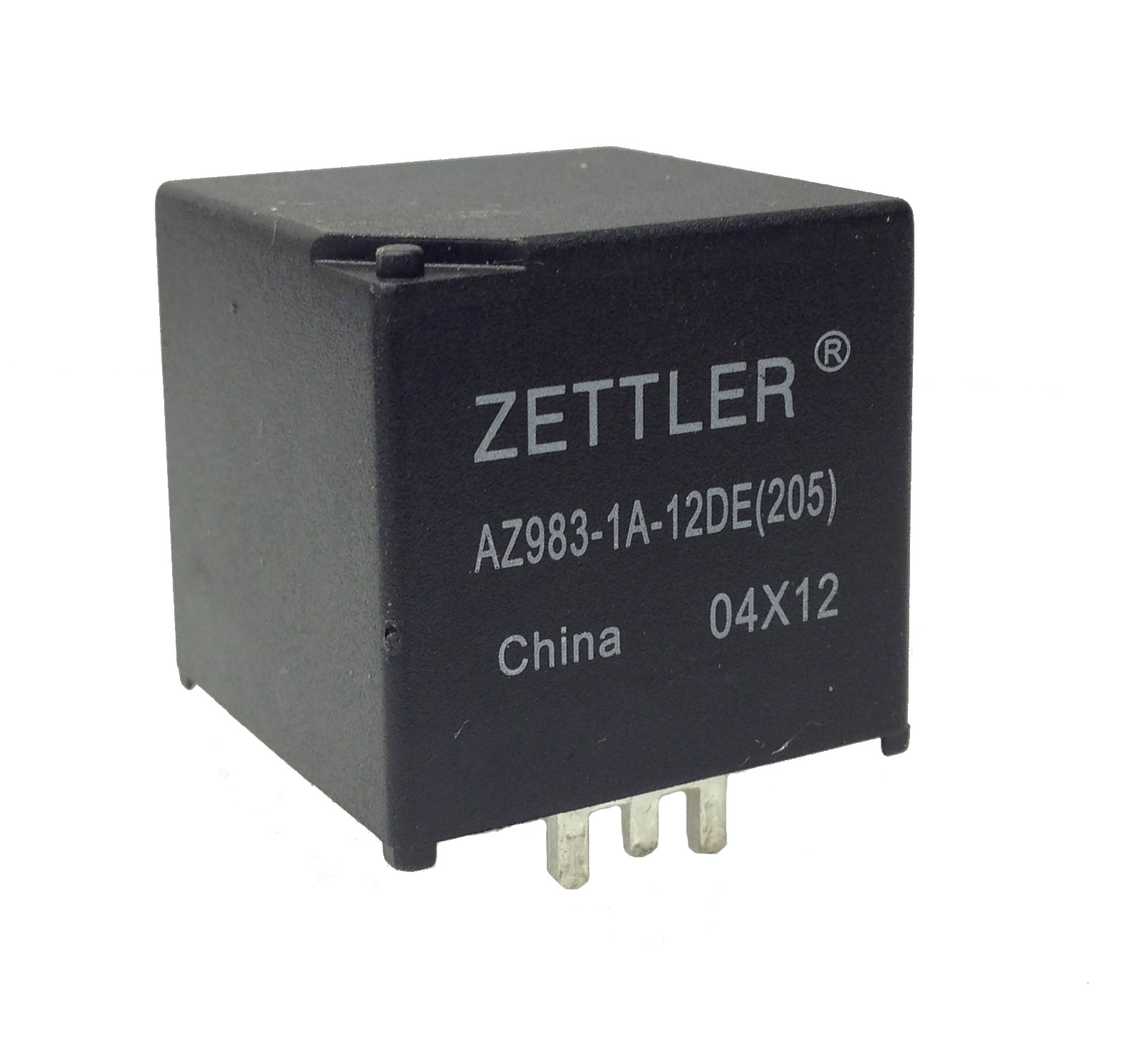

Model	AZ983 - 80 AMP MINI-ISO AUTOMOTIVE RELAY [PDF Download]
Outline
Max. Switched Current	80A
Contact Form	1 Form A 1 Form B 1 Form C
Layout
