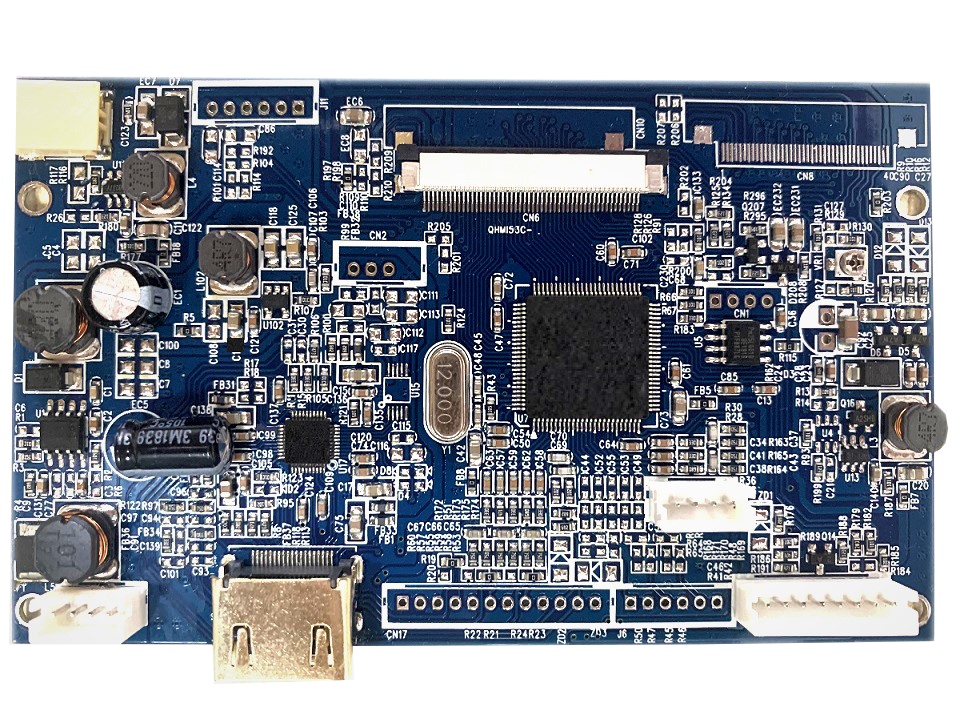

ZEDH 50pin A series

ZEDH 50pin A series

  • Input:       HDMI

  • Output:    RGB

  • Power:     5V/2A

  • Size:        107.0 x 65.5 mm

  • Working Temperature:  0~65 ℃

  • ZETTLER TFT Products Mated:

                     ATM0700D6x

                     ATM0700D12x

                     ATM0900D6X

  • Product P/N Rule:

                      For example, if TFT Product P/N is ATM0700D6B,

                      then the mated Drive Board P/N is ZEDH0700D6B.





PDF Download
